Microphone Sound Input Module

Post by Futterama » Sat Feb 06, 2016 11:37 am

Hi forum,

I have just built the Microphone Sound Input Module: http://www.freetronics.com.au/products/ ... rXOnfkrLcs

I did my own PCB layout according to the schematic V1.1 (2013-05-24). The module works but I see some unexpected outputs on my scope.

I'm mostly interested in the Sound Pressure Level Output (to measure peak sound level) so I hooked up my scope to the output and started making noises. The module is driven from 4xAA batteries outputting 5.1V.

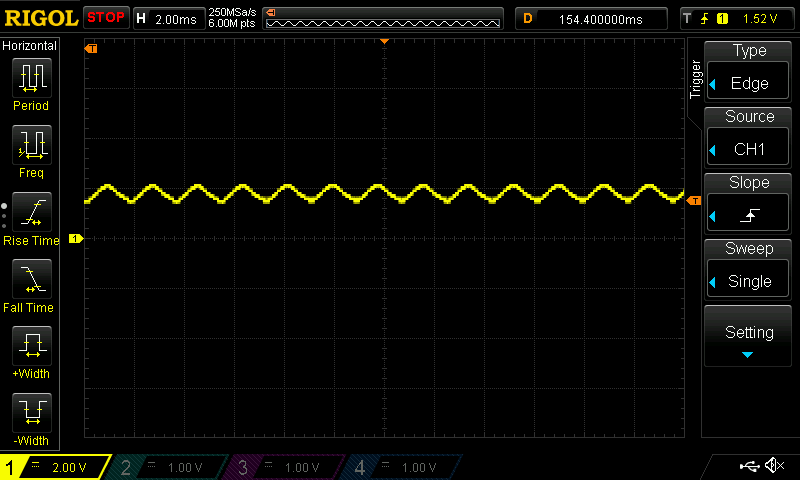

1. The first thing I noticed was that the Sound Pressure Level Output is not a flat line on the scope, it varies with the frequency of noise (me singing tones). This will make it harder to measure the sound pressure level with a microcontroller.


2. I also noticed that no matter how loud a noise I was making, the Sound Pressure Level Output would never reach more that around 4V even though the input voltage is 5.1V. So I took a look at the Amplified Audio Output and saw that the positive going wave would clip before the negtive going wave. I verified the VCC center ref to be 2.55V which is exactly 50% of VCC. This does not seem right to me. Is this because the TLC272 is not rail-to-rail output capable? If this is the case, why would we need 50% VCC ref? According to the datasheet the "High-level output voltage" is typ 3.8V with 5V VCC, so the 50% VCC should probably be more like 38% VCC to take the limited TLC272 output voltage into consideration.


3. Sound Pressure Level Output during my air compressor running under my work table.


4. Sound Pressure Level Output with noise from my air horn.


5. Amplified Audio Output with noise from my air horn.


6. Amplified Audio Output with noise from my air horn zoomed in so the clipping can be seen. How can the gain be adjusted so the module is less sensitive to sound pressure level and a higher volume sound can be measured?


7. Sometimes I experience some self-resonance or something, like others have reported. The LED stays on and I can measure this high frequency signal (around 31.2kHz) on the Amplified Audio Output.

I hope you can help me a bit here, using microphones is very new to me so I just picked the circuit that seemed to be the best, but it still has some problems to be solved before I can use it.

Thanks.
Last edited by Futterama on Thu Mar 09, 2017 8:35 am, edited 1 time in total.

angusgr
Freetronics Staff
Freetronics Staff
Posts: 853
Joined: Tue Apr 09, 2013 11:19 pm
Location: Melbourne, Australia
Contact:

Re: Microphone Sound Input Module

Post by angusgr » Wed Feb 10, 2016 2:28 am

Hi Futterama,

Thanks for the comments and the very useful oscilloscope captures.

Regarding the SPL output varying with frequency, the audio output is low pass filtered to produce the SPL output but - as you noted - no filter is perfect. There is also a tradeoff between how aggressively the design filters, and how quickly it can detect attack/release of a particular sound. If you need a lower frequency filtering then you could add additional software or hardware low pass filtering stages (for instance software oversampling and averaging), at the expense of response time.

Regarding clipping on the high side, at a glance I think you're correct - this is a flaw with the module design. I've raised an issue on the design's github repository as a reminder for the next time the module is revised. If you were keen to extract the full output range then you could swap R5 or R6 in order to move the zero point.

Regarding sensitivity, the gain on the MIC module is unfortunately set in the hardware and not user configurable. You will need a more sophisticated circuit if you need to be able to dial in a particular sensitivity for your application, sorry about that.

Angus

Futterama
Posts: 2
Joined: Sat Feb 06, 2016 10:42 am

Re: Microphone Sound Input Module

Post by Futterama » Wed Feb 10, 2016 9:54 am

Hi Angus,

Thanks for the response.

The freetronics module was a good first build for learning, I have since moved on to more sophisticated circuits with 4 rail-to-rail op-apms which are better suited for my needs.

But thanks for the free circuit, this got me going in the right direction ;)

Best regards,
Futterama

redwoodword
Posts: 1
Joined: Thu Mar 09, 2017 1:17 am

Re: Microphone Sound Input Module

Post by redwoodword » Thu Mar 09, 2017 1:41 am

Thanks Futterama. This helps to explain why I'm not getting a full range of values out of the Sound Pressure Level pin. Am I understanding correctly that the R5 and R6 values need to change to get the full range? Do we know what these resistor values should be to get the full range? Any plans to update this module with these changes in the near future?
